WPGT
- 1、Application：high efficiency mold processing, especially for contour cavities
- 2、Materials: steel、stainless steel and cast iron
- 3、Exchangable with ZCC-CT WPGT
DESCRIPTION

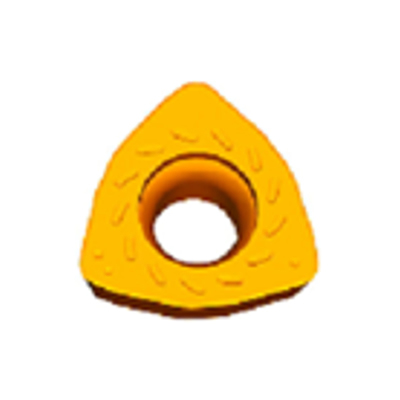

| 3D Image |  | |||||

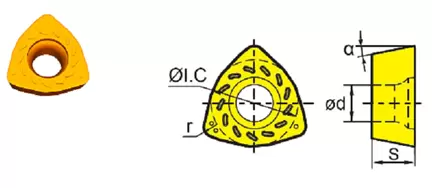

| 2D | ||||||
| Propertitiy | 1、Application：high efficiency mold processing, especially for contour cavities | |||||
| 2、Materials: steel、stainless steel and cast iron | ||||||
| 3、Exchangable with ZCC-CT WPGT | ||||||
| Item | Description | IC(mm) | Ød(mm) | S(mm) | r(mm) | α |
| 1 | Z-WPGT050315ZSR | 7.94 | 4.0 | 3.50 | 1.5 | 11° |
| 2 | Z-WPGT060415ZSR | 9.525 | 4.4 | 4.20 | 1.5 | 11° |
| 3 | Z-WPGT080615ZSR | 12.85 | 5.5 | 6.35 | 1.5 | 11° |
| 4 | Z-WPGT090725ZSR | 15 | 5.5 | 7.00 | 2.5 | 11° |
| 5 | Z-WPGT050315ZSR-PM | 7.94 | 4.0 | 3.50 | 1.5 | 11° |
| 6 | Z-WPGT060415ZSR-PM | 9.525 | 4.4 | 4.20 | 1.5 | 11° |
| 7 | Z-WPGT080615ZSR-PM | 12.85 | 5.5 | 6.35 | 1.5 | 11° |
| 8 | Z-WPGT090725ZSR-PM | 15 | 5.5 | 7.00 | 2.5 | 11° |
FAQ
1: Do you provide samples? Are they free?
A: Yes, we provide insert samples and they are free when the insert quantity is less than 5 pieces, but you need to pay the delivery charge to DHL. We also offer you complimentary milling cutter bodies if you purchase milling inserts up to a certain amount.
2. What’s your payment terms?
A:T/T or L/C.
3. What’s your delivery time?
A:Usually we will arrange the shipment in 7-15 days.
