DESCRIPTION

3D Image
2D

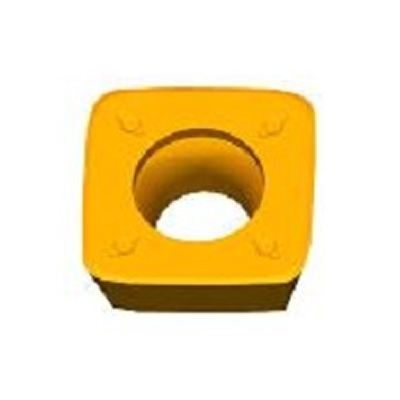

Propertitiy	1、Application：high efficiency mold processing
	2、Materials: steel、stainless steel and cast iron
	3、Exchangable with ZCC-CT SDMT
	4、DM   blunt geometry edge   makes the inserts more suitable for hard materials such as hardened steel and   cast iron;
	5、PM    sharp geometry edge   makes the inserts more suitable for machine power shortage and stainless   steel、titanium alloy   and other sticky materials;

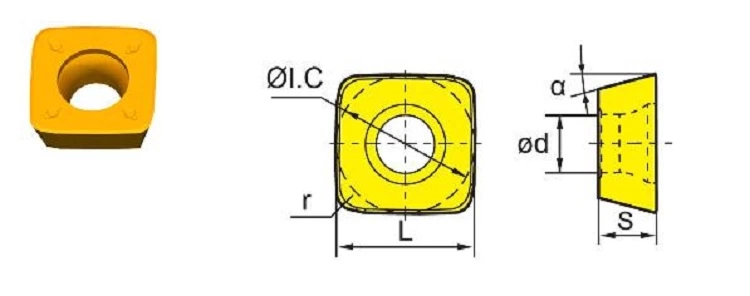

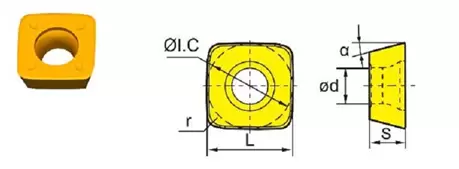

Item	Description	IC(mm)	L(mm)	Ød(mm)	S(mm)	r(mm)	α
1	Z-SDMT06T208-DM	6.35	6.35	2.5	2.58	0.8	15°
2	Z-SDMT09T312-DM	6.35	6.35	4.0	3.97	0.8	15°
3	Z-SDMT120412-DM	12.7	12.7	4.4	4.76	1.2	15°
4	Z-SDMT150520-DM	15.875	15.875	5.5	5.56	2.0	15°
5	Z-SDMT06T208-PM	6.35	6.35	2.5	2.58	0.8	15°
6	Z-SDMT09T312-PM	6.35	6.35	4.0	3.97	0.8	15°
7	Z-SDMT120412-PM	12.7	12.7	4.4	4.76	1.2	15°
8	Z-SDMT150520-PM	15.875	15.875	5.5	5.56	2.0	15°
