SNGX
- 1、Application：Face Milling Inserts
- 2、Materials: steel、
- 3、The inserts are grinding fully to make sure high dimensional accuracy, width tolerance ± 0.025mm; 8 edges available;
- 4、Customerized decisiging accepted;
DESCRIPTION

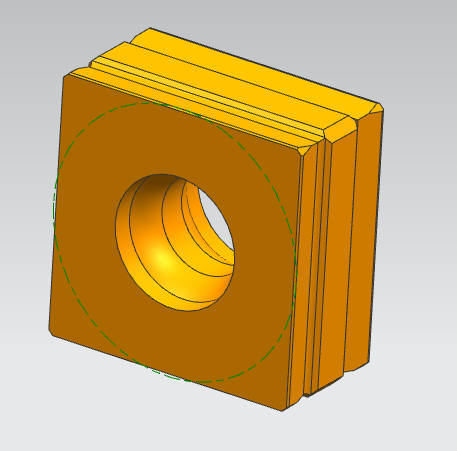

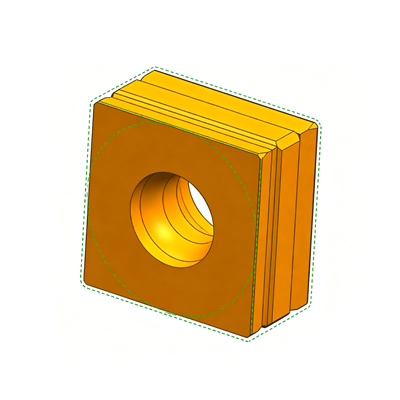

| 3D Image |  | |||||

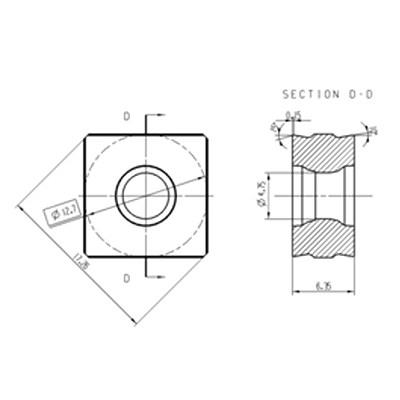

| 2D |  | |||||
| Propertitiy | 1、Application：Face Milling Inserts | |||||
| 2、Materials: steel、 | ||||||
| 3、The inserts are grinding fully to make sure high dimensional accuracy, width tolerance ± 0.025mm; 8 edges available; | ||||||
| 4、Customerized decisiging accepted; | ||||||
| Item | Description | IC(mm) | S(mm) | ød(mm) | α(º) | |
| 1 | SNGX1206 | 12.70 | 6.35 | 4.75 | 10 | |
| 2 | ||||||
| 3 | ||||||
| 4 | ||||||
| 5 | ||||||
| 6 | ||||||
FAQ
1: Do you provide samples? Are they free?
A: Yes, we provide insert samples and they are free when the insert quantity is less than 5 pieces, but you need to pay the delivery charge to DHL. We also offer you complimentary milling cutter bodies if you purchase milling inserts up to a certain amount.
2. What’s your payment terms?
A:T/T or L/C.
3. What’s your delivery time?
A:Usually we will arrange the shipment in 7-15 days.
