Finish Ball Milling Inserts
- 1、Application：Mold forming and high-priecision milling
- 2、Materials: Stainless Steel、Steel、High temperature alloys
- 3、Exchangable with ZCC-CT ROHX series inserts
- 5、Customized designing acceptable
DESCRIPTION

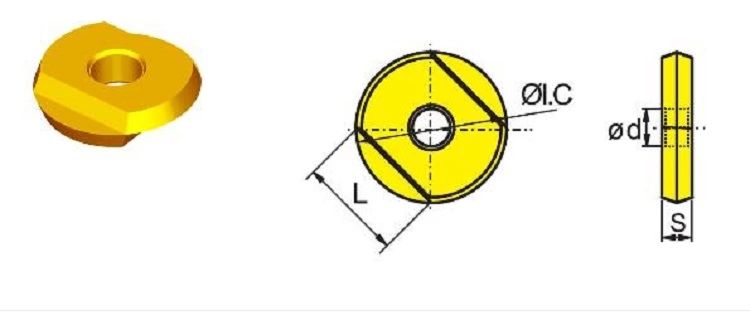

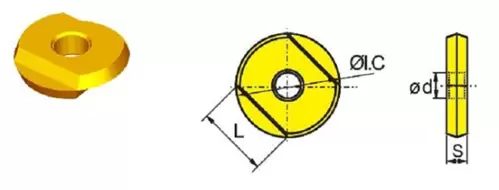

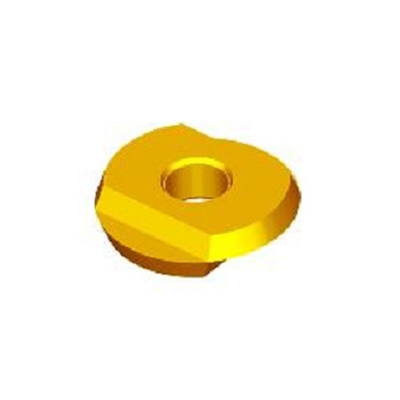

| 3D Image |  | |||||

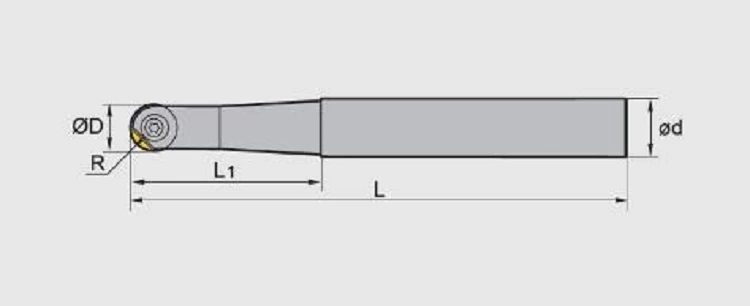

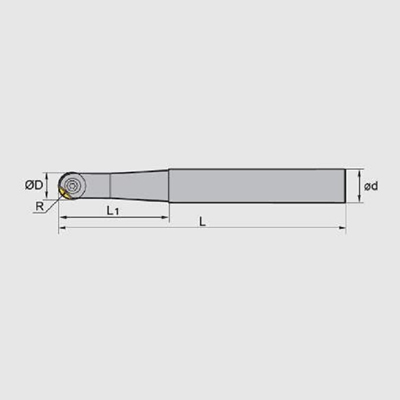

| 2D | ||||||
| Propertitiy | 1、Application：Mold forming and high-priecision milling | |||||
| 2、Materials: Stainless Steel、Steel、High temperature alloys | ||||||
| 3、Exchangable with ZCC-CT ROHX series inserts | ||||||
| 4、Double edges, Zero rake angle designing with excellent edge strength | ||||||
| 5、Customized designing acceptable | ||||||
| Item | Description | IC(mm) | ￠d(mm) | S(mm) | α | |
| 1 | Z-ROHX10026 | 10 | 2.5 | 2.6 | 20° | |
| 2 | Z-ROHX1203 | 12 | 4 | 3 | 20° | |
| 3 | Z-ROHX1604 | 16 | 5 | 4 | 20° | |
| 4 | Z-ROHX2005 | 20 | 5 | 5 | 20° | |
FAQ
1: Do you provide samples? Are they free?
A: Yes, we provide insert samples and they are free when the insert quantity is less than 5 pieces, but you need to pay the delivery charge to DHL. We also offer you complimentary milling cutter bodies if you purchase milling inserts up to a certain amount.
2. What’s your payment terms?
A:T/T or L/C.
3. What’s your delivery time?
A:Usually we will arrange the shipment in 7-15 days.
