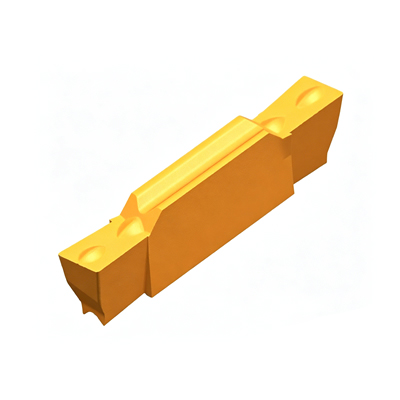

Cut Off Parting Inserts
- 1、Application：Parts cut off and remove the small cylinders
- 2、Materials: Steel、Stainless Steel
- 3、Head grinding to assure high precision、good dimensional accuracy and good consistency;
- 4、Customized designing acceptable
DESCRIPTION

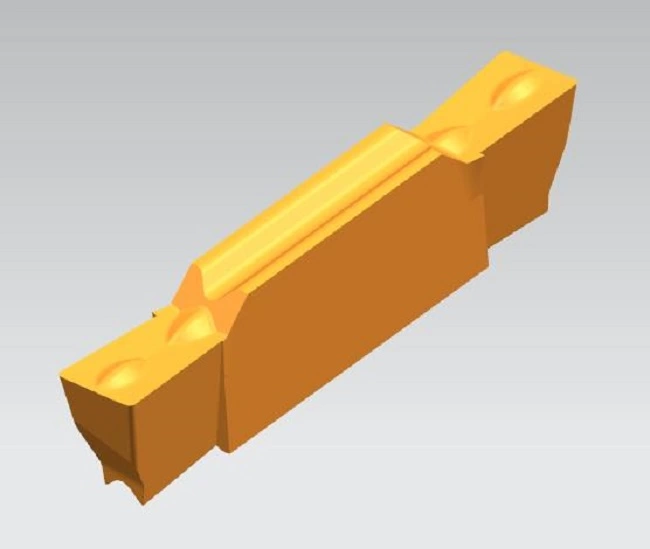

| 3D Image |  | |||||

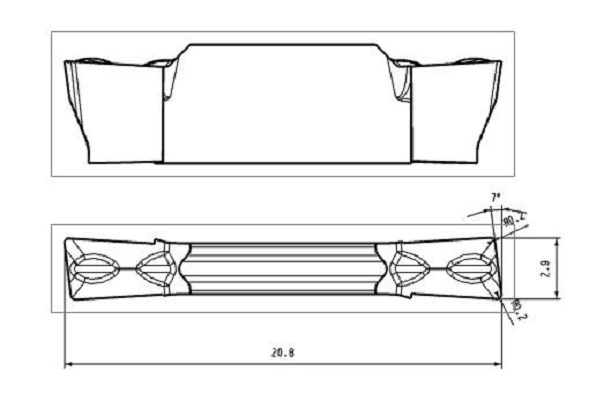

| 2D |  | |||||
| Propertitiy | 1、Application：Parts cut off and remove the small cylinders | |||||
| 2、Materials: Steel、Stainless Steel | ||||||
| 3、Head grinding to assure high precision、good dimensional accuracy and good consistency; | ||||||
| 4、Customized designing acceptable | ||||||
| 5、Exchangable to ZCC-CT or Korloy | ||||||
| Item | Description | Length(mm) | Width(mm) | Angle αº | ||
| 1 | MGMN300-M-6R/L | 20.8 | 2.8 | 6° | ||
| 2 | MGMN300-M-15R/L | 20.8 | 2.8 | 15° | ||
| 3 | MGMN400-M-6R/L | 20.8 | 3.8 | 6° | ||
| 4 | MGMN400-M-15R/L | 20.8 | 3.8 | 15° | ||
| 5 | MGMN500-M-6R/L | 20.8 | 4.8 | 6° | ||
| 6 | MGMN500-M-15R/L | 20.8 | 4.8 | 15° | ||
FAQ
1: Do you provide samples? Are they free?
A: Yes, we provide insert samples and they are free when the insert quantity is less than 5 pieces, but you need to pay the delivery charge to DHL. We also offer you complimentary milling cutter bodies if you purchase milling inserts up to a certain amount.
2. What’s your payment terms?
A:T/T or L/C.
3. What’s your delivery time?
A:Usually we will arrange the shipment in 7-15 days.
