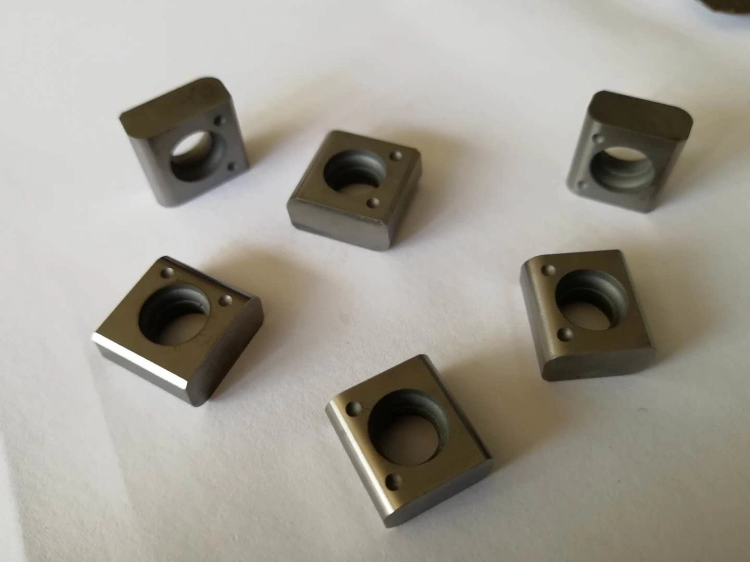

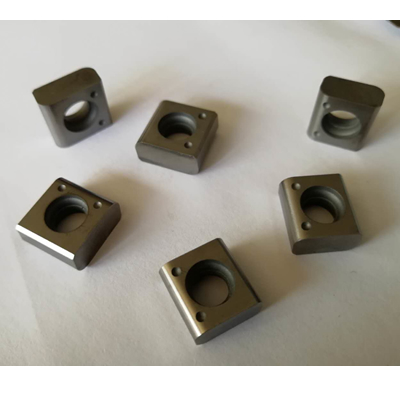

Crankshaft Milling Inserts
- 1、Application：Crankshaft Milling Inserts
- 2、CNC Grinding assure the inserts’ consistency and accuracy;
- 3、Customized designing acceptable;
- 4、Exchangable;
DESCRIPTION

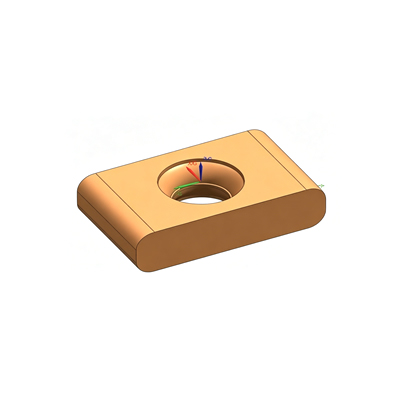

| 3D Image |  | |||||
| 2D |  | |||||
| Propertitiy | 1、Application：Crankshaft Milling Inserts | |||||
| 2、Materials: Steel、Cast Iron | ||||||
| 3、CNC Grinding assure the inserts’ consistency and accuracy; | ||||||
| 4、Customized designing acceptable; | ||||||
| 5、Exchangable; | ||||||
| Item | Description | L(mm) | W(mm) | S(mm) | ￠d(mm) | R(mm) |
| 1 | LNEC151207-2R30 | 15.875 | 12.7 | 7.94 | 5.50 | 3.0 |
| 2 | LNEC151207-2R35 | 15.875 | 12.7 | 7.94 | 5.50 | 3.5 |
| 3 | LNEC151207-2R40 | 15.875 | 12.7 | 7.94 | 5.50 | 4.0 |
| 4 | LNEC151207-2R45 | 15.875 | 12.7 | 7.94 | 5.50 | 4.5 |
| 5 | LNEC151207-2R50 | 15.875 | 12.7 | 7.94 | 5.50 | 5.0 |
| 6 | LNEC151207-2R55 | 15.875 | 12.7 | 7.94 | 5.50 | 5.5 |
| 7 | LNEC151207-4R50H | 15.875 | 12.7 | 7.94 | 5.50 | 5.0 |
| 8 | LNEC151206-4R40H | 15.875 | 12.7 | 6.35 | 5.50 | 4.0 |
| 9 | LNEC151207-4R60H | 15.875 | 12.7 | 7.94 | 5.50 | 6.0 |
FAQ
1: Do you provide samples? Are they free?
A: Yes, we provide insert samples and they are free when the insert quantity is less than 5 pieces, but you need to pay the delivery charge to DHL. We also offer you complimentary milling cutter bodies if you purchase milling inserts up to a certain amount.
2. What’s your payment terms?
A:T/T or L/C.
3. What’s your delivery time?
A:Usually we will arrange the shipment in 7-15 days.
