CDE Cylinder Milling Inserts
- 1、Application：Cylinder Milling Inserts
- 2、CNC Grinding assure the inserts’ consistency and accuracy;
- 3、Customized designing acceptable;
- 4、Exchangable to ZCC-CT CDE series inserts;
DESCRIPTION

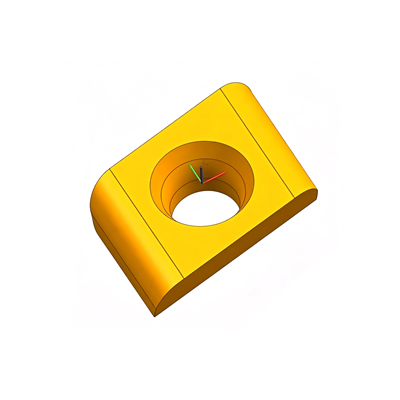

| 3D Image |  | ||||||

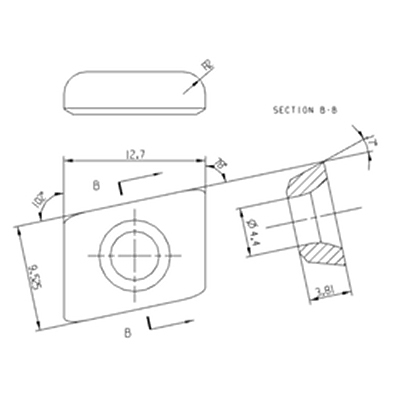

| 2D |  | ||||||
| Propertitiy | 1、Application：Cylinder Milling Inserts | ||||||
| 2、Materials: Steel、Cast Iron | |||||||
| 3、CNC Grinding assure the inserts’ consistency and accuracy; | |||||||
| 4、Customized designing acceptable; | |||||||
| 5、Exchangable to ZCC-CT CDE series inserts; | |||||||
| Item | Description | L | W | T | Radius /Chamfer | α° | H |
| 1 | CDE212R02 | 9.525 | 7.94 | 4.76 | 0.80 | 17 | 4.4 |
| 2 | CDE221R04 | 9.000 | 6.35 | 3.18 | 0.40 | 20 | 2.8 |
| 3 | CDE313R01 | 11.110 | 9.525 | 4.76 | 0.50 | 17 | 4.2 |
| 4 | CDE322R/L01 | 12.700 | 9.525 | 3.81 | 0.50 | 17 | 4.2 |
| 5 | CDE323R/L01 | 12.700 | 9.525 | 4.76 | 1.00 | 17 | 4.4 |
| 6 | CDE323R/L005 | 12.700 | 9.525 | 4.76 | 0.80 | 17 | 4.4 |
| 7 | CDE323R/L05 | 12.700 | 9.525 | 4.76 | 1.00 | 17 | 4.4 |
| 8 | CDE334R/L05 | 19.050 | 9.525 | 6.35 | 0.50 | 17 | 4.2 |
FAQ
1: Do you provide samples? Are they free?
A: Yes, we provide insert samples and they are free when the insert quantity is less than 5 pieces, but you need to pay the delivery charge to DHL. We also offer you complimentary milling cutter bodies if you purchase milling inserts up to a certain amount.
2. What’s your payment terms?
A:T/T or L/C.
3. What’s your delivery time?
A:Usually we will arrange the shipment in 7-15 days.
