QC 切槽刀片
- 1、应用：轴和环件的外切槽
- 2、材质：钢、铸铁、不锈钢
- 3、可与ZCC-CT QC系列产品互换
- 4、接受定制设计
描述
| 3D 图像 |  属性 | ||||||
| 2D | 应用 | ||||||
| 轴和环零件的外部开槽 | 1、材料：钢：铸铁 | ||||||
| 2、不锈钢、刀片经过充分磨削，尺寸精度高，宽度公差±0.025mm；、可与ZCC-CT QC系列产品互换 | |||||||
| 3、接受定制设计 | |||||||
| 4、物品 | |||||||
| 5、描述 | |||||||

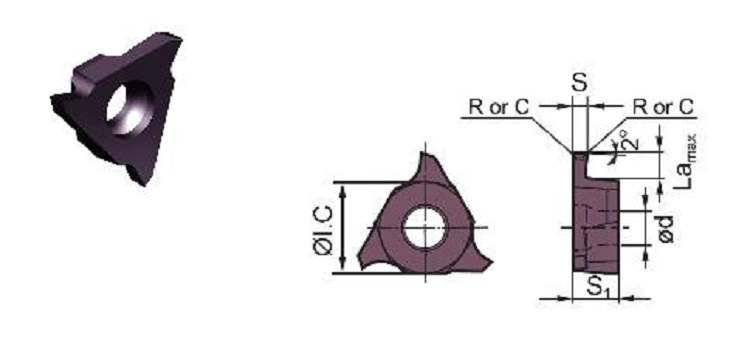

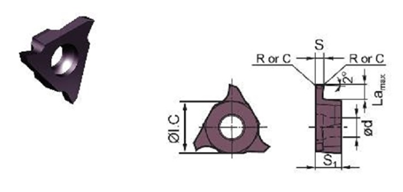

| 拉马克斯 | 遥控 | S±0.025 | ØI.C | S1 | ød | ||
| 1 | Z-QC11L120-R02 | 1.20 | 1.5 | R0.2 | 6.35 | 3.18 | 2.8 |
| 2 | Z-QC11L125-R02 | 1.25 | 1.5 | R0.2 | 6.35 | 3.18 | 2.8 |
| 3 | Z-QC11L145-R02 | 1.45 | 1.5 | R0.2 | 6.35 | 3.18 | 2.8 |
| 4 | Z-QC11L150-R02 | 1.50 | 1.5 | R0.2 | 6.35 | 3.18 | 2.8 |
| 5 | Z-QC11L200-R02 | 2.00 | 2.0 | R0.2 | 6.35 | 3.18 | 2.8 |
| 6 | Z-QC11L225-R02 | 2.25 | 2.0 | R0.2 | 6.35 | 3.18 | 2.8 |
| 7 | Z-QC16L110-R01 | 1.10 | 2.0 | R0.1 | 9.525 | 3.18 | 4.4 |
| 8 | Z-QC16L125-R02 | 1.25 | 2.0 | R0.2 | 9.525 | 3.18 | 4.4 |
| 9 | Z-QC16L145-R02 | 1.45 | 2.0 | R0.2 | 9.525 | 3.18 | 4.4 |
| 10 | Z-QC16L150-R02 | 1.50 | 2.0 | R0.2 | 9.525 | 3.18 | 4.4 |
| 11 | Z-QC16L175-R02 | 1.75 | 2.0 | R0.2 | 9.525 | 3.18 | 4.4 |
| 12 | Z-QC16L185-R02 | 1.85 | 2.5 | R0.2 | 9.525 | 3.18 | 4.4 |
| 13 | Z-QC16L200-R02 | 2.00 | 2.5 | R0.2 | 9.525 | 3.18 | 4.4 |
| 14 | Z-QC16L250-R02 | 2.50 | 2.5 | R0.2 | 9.525 | 3.18 | 4.4 |
| 15 | Z-QC16L300-R02 | 3.00 | 3.0 | R0.2 | 9.525 | 3.18 | 4.4 |
| 16 | Z-QC22L125-R02 | 1.25 | 2.0 | R0.2 | 12.7 | 4.76 | 5.5 |
| 17 | Z-QC22L145-R02 | 1.45 | 2.0 | R0.2 | 12.7 | 4.76 | 5.5 |
| 18 | Z-QC22L150-R02 | 1.50 | 3.5 | R0.2 | 12.7 | 4.76 | 5.5 |
| 19 | Z-QC22L175-R02 | 1.75 | 3.5 | R0.2 | 12.7 | 4.76 | 5.5 |
| 20 | Z-QC22L185-R02 | 1.85 | 3.5 | R0.2 | 12.7 | 4.76 | 5.5 |
| 21 | Z-QC22L200-R02 | 2.00 | 3.5 | R0.2 | 12.7 | 4.76 | 5.5 |
| 22 | Z-QC22L230-R02 | 2.30 | 3.5 | R0.2 | 12.7 | 4.76 | 5.5 |
| 23 | Z-QC22L250-R03 | 2.50 | 4.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 24 | Z-QC22L265-R03 | 2.65 | 4.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 25 | Z-QC22L280-R03 | 2.80 | 4.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 26 | Z-QC22L300-R03 | 3.00 | 4.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 27 | Z-QC22L320-R03 | 3.20 | 4.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 28 | Z-QC22L330-R03 | 3.30 | 4.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 29 | Z-QC22L350-R03 | 3.50 | 5.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 30 | Z-QC22L400-R04 | 4.00 | 5.0 | R0.4 | 12.7 | 4.76 | 5.5 |
| 31 | Z-QC22L430-R04 | 4.30 | 5.0 | R0.4 | 12.7 | 4.76 | 5.5 |
| 32 | Z-QC22L450-R04 | 4.50 | 5.0 | R0.4 | 12.7 | 4.76 | 5.5 |
| 33 | Z-QC22L480-R04 | 4.80 | 5.0 | R0.4 | 12.7 | 5.06 | 5.5 |
| 34 | Z-QC11R120-R02 | 1.20 | 1.5 | R0.2 | 6.35 | 3.18 | 2.8 |
| 35 | Z-QC11R125-R02 | 1.25 | 1.5 | R0.2 | 6.35 | 3.18 | 2.8 |
| 36 | Z-QC11R145-R02 | 1.45 | 1.5 | R0.2 | 6.35 | 3.18 | 2.8 |
| 37 | Z-QC11R150-R02 | 1.50 | 1.5 | R0.2 | 6.35 | 3.18 | 2.8 |
| 38 | Z-QC11R200-R02 | 2.00 | 2.0 | R0.2 | 6.35 | 3.18 | 2.8 |
| 39 | Z-QC11R225-R02 | 2.25 | 2.0 | R0.2 | 6.35 | 3.18 | 2.8 |
| 40 | Z-QC16R110-R01 | 1.10 | 2.0 | R0.1 | 9.525 | 3.18 | 4.4 |
| 41 | Z-QC16R125-R02 | 1.25 | 2.0 | R0.2 | 9.525 | 3.18 | 4.4 |
| 42 | Z-QC16R145-R02 | 1.45 | 2.0 | R0.2 | 9.525 | 3.18 | 4.4 |
| 43 | Z-QC16R150-R02 | 1.50 | 2.0 | R0.2 | 9.525 | 3.18 | 4.4 |
| 44 | Z-QC16R175-R02 | 1.75 | 2.0 | R0.2 | 9.525 | 3.18 | 4.4 |
| 45 | Z-QC16R185-R02 | 1.85 | 2.5 | R0.2 | 9.525 | 3.18 | 4.4 |
| 46 | Z-QC16R200-R02 | 2.00 | 2.5 | R0.2 | 9.525 | 3.18 | 4.4 |
| 47 | Z-QC16R250-R02 | 2.50 | 2.5 | R0.2 | 9.525 | 3.18 | 4.4 |
| 48 | Z-QC16R300-R02 | 3.00 | 3.0 | R0.2 | 9.525 | 3.18 | 4.4 |
| 49 | Z-QC22R125-R02 | 1.25 | 2.0 | R0.2 | 12.7 | 4.76 | 5.5 |
| 50 | Z-QC22R145-R02 | 1.45 | 2.0 | R0.2 | 12.7 | 4.76 | 5.5 |
| 51 | Z-QC22R150-R02 | 1.50 | 3.5 | R0.2 | 12.7 | 4.76 | 5.5 |
| 52 | Z-QC22R175-R02 | 1.75 | 3.5 | R0.2 | 12.7 | 4.76 | 5.5 |
| 53 | Z-QC22R185-R02 | 1.85 | 3.5 | R0.2 | 12.7 | 4.76 | 5.5 |
| 54 | Z-QC22R200-R02 | 2.00 | 3.5 | R0.2 | 12.7 | 4.76 | 5.5 |
| 55 | Z-QC22R230-R02 | 2.30 | 3.5 | R0.2 | 12.7 | 4.76 | 5.5 |
| 56 | Z-QC22R250-R03 | 2.50 | 4.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 57 | Z-QC22R265-R03 | 2.65 | 4.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 58 | Z-QC22R280-R03 | 2.80 | 4.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 59 | Z-QC22R300-R03 | 3.00 | 4.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 60 | Z-QC22R320-R03 | 3.20 | 4.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 61 | Z-QC22R330-R03 | 3.30 | 4.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 62 | Z-QC22R350-R03 | 3.50 | 5.0 | R0.3 | 12.7 | 4.76 | 5.5 |
| 63 | Z-QC22R400-R04 | 4.00 | 5.0 | R0.4 | 12.7 | 4.76 | 5.5 |
| 64 | Z-QC22R430-R04 | 4.30 | 5.0 | R0.4 | 12.7 | 4.76 | 5.5 |
| 65 | Z-QC22R450-R04 | 4.50 | 5.0 | R0.4 | 12.7 | 4.76 | 5.5 |
| 66 | Z-QC22R480-R04 | 4.80 | 5.0 | R0.4 | 12.7 | 5.06 | 5.5 |
常问问题
1：你们提供样品吗？他们是免费的吗？
A: 是的，我们提供插件样品，当插件数量少于 5 件时免费，但您需要向 DHL 支付运费。如果您购买了一定数量的铣削刀片，我们还为您提供免费的铣刀刀体。
2. 你们的付款条件是什么？
A:T/T 或 L/C。
3. 你们的交货时间是多少？
A: 通常我们会在 7-15 天内安排发货。
