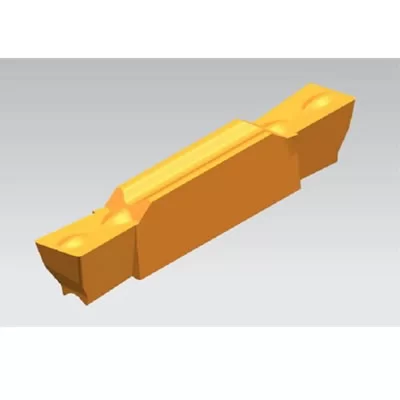

• External Parting Inserts
External Parting Inserts
  • 1、Application: Workpiece cutting off and remove the small cylinders of the parts;
  • 2、Features: Head grinding to assure high precision、good dimensional accuracy and good consistency;
  • 3、Materials: Steel、Stainless steel;
  • 4、Matching with MGMN series tool holders; 5、Customer designing is acceptable;

Description

1、Application: Workpiece cutting off and remove the small cylinders of the parts;

2、Features: Head grinding to assure high precision、good dimensional accuracy and good consistency;

3、Materials: Steel、Stainless steel;

4、Matching with MGMN series tool holders;

5、Customer designing is acceptable;

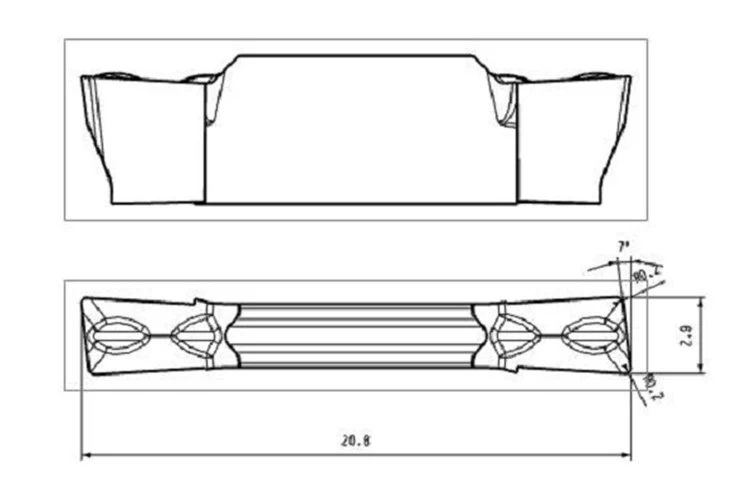

Item

Description

Length(mm)

Width(mm)

Angle αº

1

MGMN300-M-6R/L

20.8

2.8

2

MGMN300-M-15R/L

20.8

2.8

15°

3

MGMN400-M-6R/L

20.8

3.8

4

MGMN400-M-15R/L

20.8

3.8

15°

5

MGMN500-M-6R/L

20.8

4.8

6

MGMN500-M-15R/L

20.8

4.8

15°
